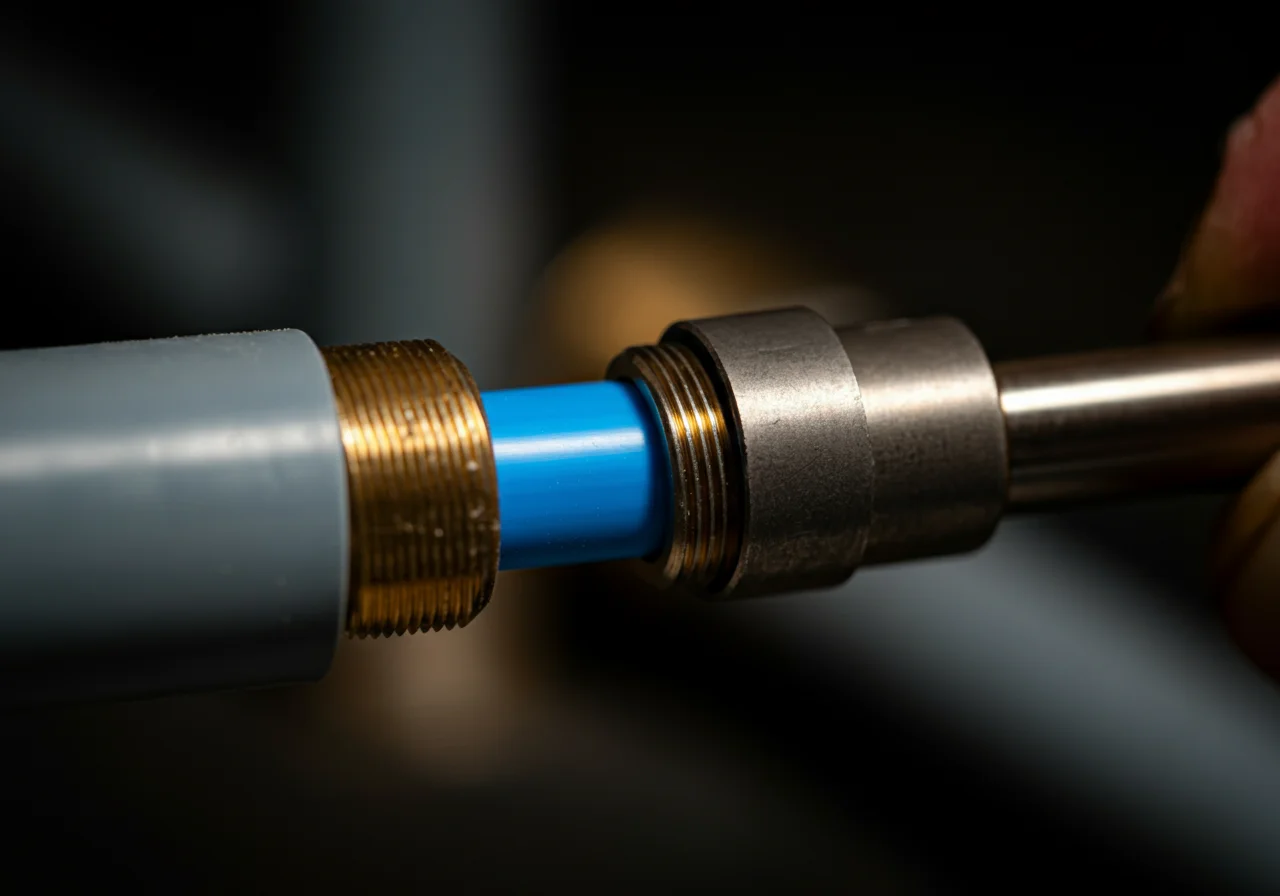

Uponor M12 Expander
The Diagnosis: The Critical Tool for Modern PEX-A Plumbing
The Uponor M12 Expander, often referred to as the Milwaukee M12™ Force Logic™ PEX Expander, is not merely a tool; it is the engineered solution required to properly install Uponor AquaPEX® and other PEX-A tubing using the cold expansion method. This guide explains why this specific tool has become the industry standard for professional, reliable, and code-compliant PEX-A installations.
Technical Deep Dive: Mastering the Cold Expansion Process
PEX-A (crosslinked polyethylene type A) is manufactured using the Engel method, resulting in a polymer with superior shape memory. The Uponor M12 Expander leverages this property through a precise mechanical process. Here is the step-by-step procedure for a perfect joint:
- Step 1: Preparation. Cut the PEX-A tubing square with a dedicated PEX cutter. Ensure the tube end and fitting are clean and debris-free.
- Step 2: Tool Setup. Select the correct expansion head (½”, ¾”, 1″) for your tubing size. Insert a charged M12 REDLITHIUM™ battery. The tool’s LED lights indicate battery status and operational mode.
- Step 3: Expansion. Fully insert the PEX-A tubing onto the expansion head until it seats against the tool’s collar. Activate the tool. The head will expand radially, stretching the tubing diameter beyond the fitting’s outside dimensions.
- Step 4: Immediate Assembly. While the tubing is still in its expanded state, quickly slide it onto the Uponor ProPEX® brass or polymer fitting. You will feel it seat fully against the fitting shoulder.
- Step 5: Hold and Recover. Hold the assembly steady for 10-15 seconds. The PEX-A’s shape memory causes it to contract powerfully around the fitting, creating a uniform, full-depth, metal-to-metal grip that is stronger than the pipe itself.
Critical Technical Note: The tool’s consistent hydraulic pressure (provided by the Force Logic™ mechanism) is key. Manual expanders or improper techniques cannot achieve the uniform radial expansion required for a leak-free, permanent joint.
Code & Compliance: The Basis for Professional Acceptance
The system’s approval is rooted in plumbing codes and standards. The Uponor M12 Expander is the tool designed to meet the specific installation requirements for listed PEX-A systems.
- International Plumbing Code (IPC) & Uniform Plumbing Code (UPC): Both codes recognize PEX tubing installed per manufacturer’s instructions. Uponor’s ProPEX system, installed with the specified expansion tool, is compliant under sections governing plastic piping (e.g., IPC Chapter 7, UPC Chapter 15).
- ASTM F1960: This is the standard specification for cold expansion fittings. The tool and procedure are engineered to comply with this critical performance standard, which governs the expansion process and joint integrity.
- Listing: The entire system—tubing, fittings, and tool—is listed by IAPMO (UPC) and ICC-ES (IPC). Using an unlisted tool or method voids the product listing and warranty.
Toolbox: Essential Gear for Professional Installation
While the expander is the centerpiece, professional results require a full kit of quality tools.
| Tool | Purpose | Professional-Grade Example |
|---|---|---|
| Uponor M12 Expander | Creates cold expansion joints | Milwaukee M12™ Force Logic™ (Model 2674-20) |
| PEX Tubing Cutter | Ensures a clean, square cut | Ridgid PEX Cutter |
| Go/No-Go Gauge | Verifies proper expansion depth | Uponor Expansion Gauge |
| Deburring Tool | Removes inner ridge after cutting | Generic Brass Deburring Tool |
Why It’s the Standard: Advantages Over Alternative Methods
The Uponor M12 Expander system defines the standard for three core reasons:
- Joint Integrity: The cold expansion process does not compromise the tube wall like crimp or clamp rings, which create stress points. The resulting joint is monolithic and resistant to fatigue.
- Flow Characteristics: The expanded joint creates a smooth, full-bore connection with no internal obstructions, minimizing pressure drop and turbulence.
- System Reliability: The connection is immune to the creeping and stress relaxation that can affect mechanical compression systems over decades, offering a true 25+ year service life when installed correctly.
⚠️ Mandatory Safety & Best Practices Warning
1. Power Safety: Treat the M12 Expander as a professional power tool. Keep hands clear of the expansion head during operation. 2. Pressure Safety: NEVER activate the tool unless the expansion head is fully inserted into the tubing. Dry-firing can damage the tool. 3. System Integrity: Always use the matching ProPEX® fittings designed for cold expansion. Using fittings from other PEX systems (crimp/clamp) will result in catastrophic failure. 4. Verification: Use a Go/No-Go gauge on the first joint of the day to confirm the tool is calibrated correctly.
External Reference for Technical Standards
For a definitive explanation of the cold expansion fitting standard that governs the use of this tool, professionals should refer to the official ASTM specification:
ASTM F1960 – Standard Specification for Cold Expansion Fittings with PEX Reinforcing Rings for Use with Cross-linked Polyethylene (PEX) Tubing.
Maintenance & Troubleshooting for the M12 Expander
To ensure long-term reliability and consistent performance from your tool:
- Battery Care: Use genuine M12 REDLITHIUM™ batteries. Store batteries in a cool, dry place. The tool’s LED will flash red when battery power is insufficient for a full expansion cycle.
- Head Maintenance: Regularly inspect the expansion heads for wear, cracks, or debris. Clean heads with a soft cloth; never use lubricants on the heads or tubing.
- Common Issue: Incomplete Expansion. If the tubing is not expanding fully, check: 1) Battery charge, 2) Correct head size, 3) That the tubing is fully seated on the head before triggering.
- Storage: Store the tool and heads in the provided case to prevent damage to the precision expansion segments.
In summary, the Uponor M12 Expander is the non-negotiable key to unlocking the full performance benefits of PEX-A plumbing. Its design ensures compliance with critical engineering standards, resulting in a plumbing system defined by its longevity, reliability, and superior hydronic performance. For any professional installing Uponor AquaPEX®, this tool is not an option—it is the standard.
